HHI Marine Generator Sets
HHI Marine Generator Sets (Power:538-9,600KW) |

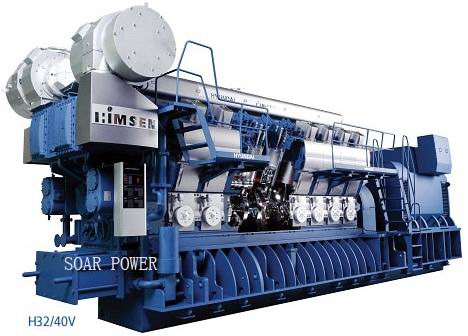

HHI Marine Generator Sets (H32/40V) |
|
We supply Hyundai marine generator sets with output rating from 538 kW up to 9,600 kW. Hyundai’s Engine have simple and smart design suitable for marine and offshore applications with high reliability and performance. The key features are:1. Heavy Fuel Engine: with same fuel of main engine (Uni-Fuel concept). Hence, the diesel fuel and heavy fuel oil of the viscosity of upto 700cSt at 50 °C is acceptable. 2. Economical and Ecological Engine: with low fuel consumption, NOx emission, and Smoke, etc. 3. Reliable and Practical Engine: with simple, smart and robust structure. - Number of engine components are minimized with Pipe-Free design. - Most of the components are directly accessible for easier maintenance.
|
| HHI Marine Generator Sets Specifications |
|
|
HHI Gensets
Model
|
Gensets Output Range (kW)
|
Hyundai Engine
|
PDF
Technical Data
|
|
50HZ
|
60HZ
|
Power (kW)
|
Speed (rpm)
|
Cylinders No. |
|
H32/40V
|
5,760-9,600
|
5,760-9,600
|
6,000-10,000
|
720/750
|
12-20 |
Download
|
|
H32/40
|
2,880-4,320
|
2,880-4,320
|
3,000-4,500
|
720/750
|
6-9 |
Download
|
|
H25/33V
|
3,917-6,528
|
3,917-6,528
|
4,080-6,800
|
900/1000
|
12-20 |
Download
|
|
H25/33
|
1,368-2,565
|
1,425-2,565
|
1,440-2,700
|
720-1000
|
6-9 |
Download
|
|
H21/32
|
752-1,710
|
752-1,710
|
800-1,800
|
720-1000
|
5-9 |
Download
|
|
H17/28
|
538-865
|
561-902
|
575-960
|
900/1000
|
5-8 |
Download
|
|
H17/21V
|
917-3,056
|
802-2,674
|
840-3200
|
1800/1500
|
6-20 |
Download
|
|
Remarks
|
1. General deinition of diesel engine rating is specified in accordance with ISO 3046/1:2002, ISO 15550:2002. However the engine outputs are available within tropical conditions without derating.
2. All types of HiMSEN engine are complied with the new upcoming NOx emission regulations, and do its best to satisfy further request if any from customers.
|
|
|
Note:
1. Please contact us to get detailed technical datasheet.
2. Materials and specifications are subject to change without notice.
|
|
|
|
|
|
|
