MAN Liquid Biofuel Generator Sets
Liquid Biofuel Gensets (L23/30S: 0.7-1.3 MW) |

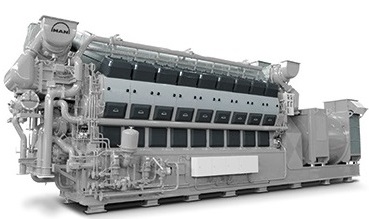

Liquid Biofuel Gensets (28/32S: 1.0 MW-4.1 MW) |
|
We supply Man Liquid Biofuel Generator sets with output power from 0.4 MW up to 8.73 MW. Biofuels are fuels generated from biomass. Basic materials could be renewable vegetable substances, such as oil seeds, corn, etc., or animal fat and oil waste. A liquid biofuel is the liquid part of these substances. Our engines can burn a wide range of substances normally considered as waste. Vegetable oils, animal fats, used cooking oil, frying fat and tallow can also be used as fuel for our engines when pre-refined.
The clear advantages of fuels derived from waste products are not only the low price, but they are also environmentally friendly. They are even CO2 neutral, generate considerably less particle emissions than HFO and emit practically no sulphates. This makes them a very attractive source of energy. |
| Liquid Biofuel Generator Sets Specifications |
|
Gensets Model
|
Output Range (kW)
|
Man Engine
|
PDF
Technical Data
|
|
50HZ
|
60HZ
|
Power/Cyl.(kW)
|
Speed (rpm)
|
Cylinders
|
|
V32/40
|
5,820-8,730
|
5,820-8,730
|
500
|
750/720
|
12-18
|
Download
|
|
L32/40
|
2,910-4,365
|
2,910-4,365
|
500
|
750/720
|
6-9
|
Download
|
|
V28/32S
|
3,647/4,103
|
3,492/3,929
|
235/225
|
750/720
|
16/18
|
Download
|
|
L27/38S
|
1,536-2,851
|
1,440-2,851
|
300-330
|
750/720
|
5-9
|
Download
|
|
L28/32S
|
1,045-1,880
|
1,000-1,800
|
220/210
|
750/720
|
5-9
|
Download
|
|
L23/30S
|
703-1,125
|
675-1,330
|
148/142/175
|
720-900
|
5-8
|
Download
|
|
L21/31S
|
1,045-1,881
|
1,045-1,881
|
220
|
1000/900
|
5-9
|
Download
|
|
L16/24S
|
428-812
|
475-941
|
90/110
|
1000/1200
|
5-9
|
Download
|
|
|
Note:
1. Please contact us to get detailed technical datasheet.
2. Materials and specifications are subject to change without notice.
|
|
|
|
|
|
|
