MaK Marine Generator Sets
MaK marine generator sets ( M20C ) |

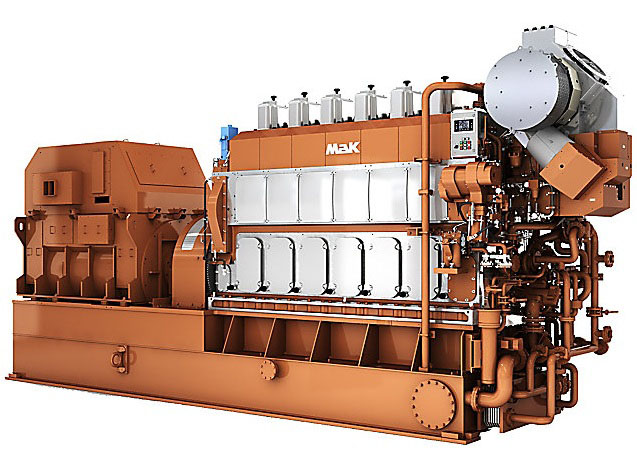

MaK marine generator sets ( M32E ) |
|
We supply MaK marine generator sets with output rating from 970 kW up to 15,360 kW, Gensets Model: M20C, M25C, M32C, M43C. MaK marine generator sets provide the power you work with and live by. So everything about them is built to help you do your job, whether that means bringing in a catch or heading back from an oil rig. It's always a perfect day for the rugged reliability of MaK Marine Power.
• Marine generator sets are approved by major marine classification societies.
• All generator sets are fully engineered with robust base mounting for ease of installation in the vessel engine room.
• MaK marine generator sets are manufactured in ISO 9001 certified facilities.
• Rugged construction and advanced design provide longer service life to overhaul.
|
| MaK Marine Generator Sets Specifications |
|
MaK Gensets Model
|
Genset Output Range (kW)
|
MaK Engine
|
PDF
Tech. Data
|
|
50HZ
|
60HZ
|
Power (kW)
|
Speed (rpm)
|
Cylinders
|
|
M20C
|
1,094-1,641
|
979-1,469
|
1,020-1,710
|
1000/900
|
6-9
|
Download
|
|
M25C
|
1,920-2,880
|
1,920-2,880
|
2,000-3,000
|
750/720
|
6-9
|
Download
|
|
M25E
|
2,016-3,024
|
2,016-3,024
|
2,100-3,150
|
750/720
|
6-9
|
Download
|
|
M32C
|
2,880-4,320
|
2,880-4,320
|
3,000-4,500
|
600
|
6-9
|
Download
|
|
M32E
|
3,168-4,752
|
3,168-4,752
|
3,300-4,950
|
750/720
|
6-9
|
Download
|
|
VM32C
|
5,760-7,680
|
5,760-7,680
|
6,000-8,000
|
750/720
|
12/16
|
Download
|
|
M43C
|
5,760-8,640
|
5,760-8,640
|
6,000-9,000
|
500/514
|
6-9
|
Download
|
|
VM43C
|
11,520-15,360
|
11,520-15,360
|
12,000-16,000
|
500/514
|
12/16
|
Download
|
|
Remarks
|
1) Depending on alternator.
2) Without common base frame.
3) With common base frame & alternator(Maker: MaK).
|
|
|
Note：
1. Please contact us to get detailed technical datasheet.
2. Materials and specifications are subject to change without notice.
|
|
|
